Product Details

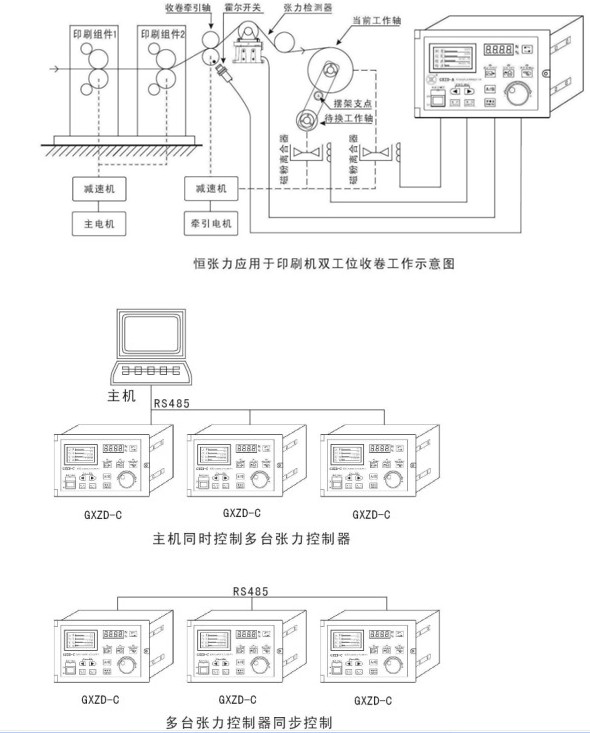

GXZD-C series high-precision automatic constant tension controller is designed for the printing press, which has two output bits of the duplex printing presses rolling to achieve pre-start automatically change axis, with automatic feeding and cutting output cut .
Features:
1, optional LCD display in Chinese or English
2 easy automatic and manual switch
3, the tension detector wiring is simple and convenient
4, convenient parameter setting
5, with duplex output for axis
6, with a duplex Pre-start output
7, and more easily communicate through the Modbus protocol machine management
Measurement accuracy | <±1Newton |
Sampling speed | 100milliseconds |
The main output way | 30V/0-1.5A×2Lk output after magnetic powder clutch or magnetic powder brake |
Aux output | 2 "DC 0-5V analogue signal output |
Communication function | RS-485 But many sets of tension controller synchronization using |

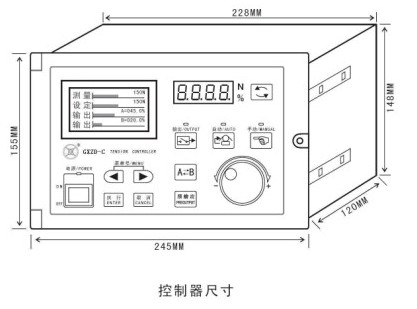

Shape dimension | 245×155×140(mm)(W×H×D) |
Installation dimension | 230×150×120(mm)(W×H×D) |
Electricity source | 180 to 240V AC 50/60Hz |
Due to design type manufacturing specifications are subject to change or size.
